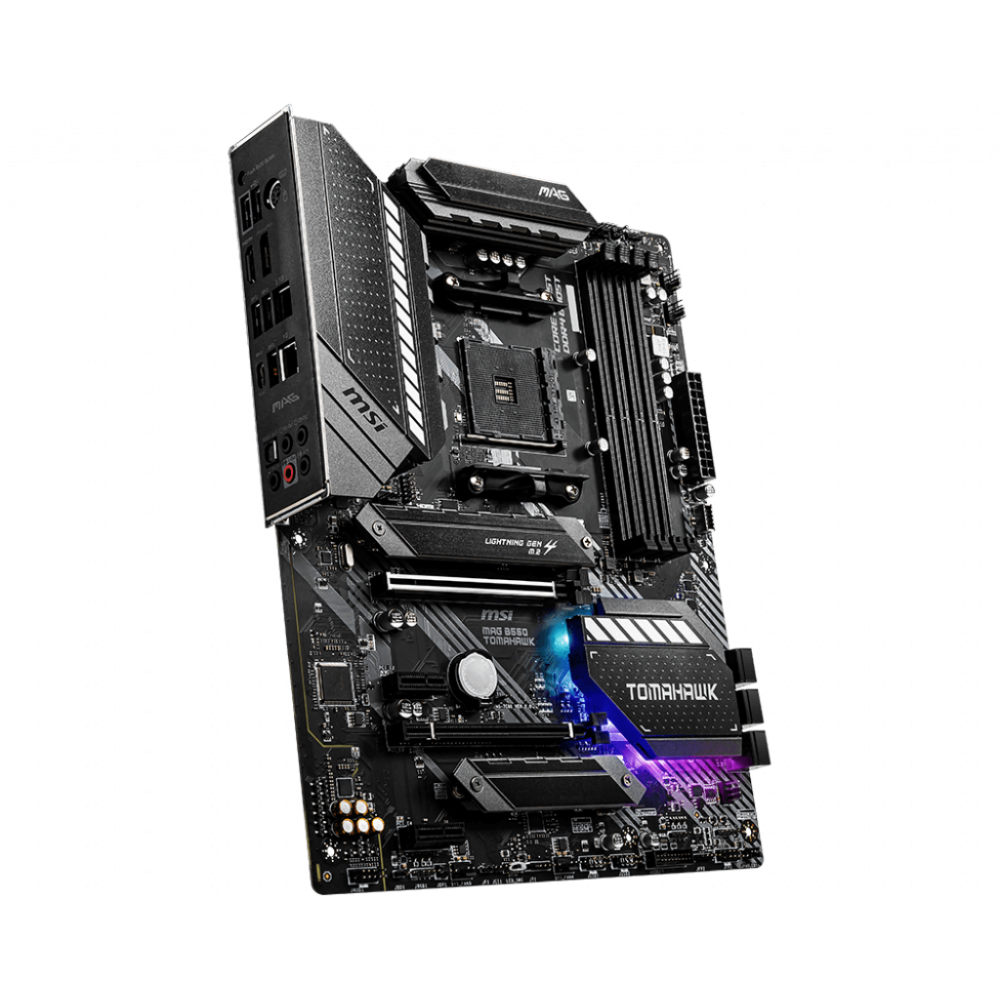

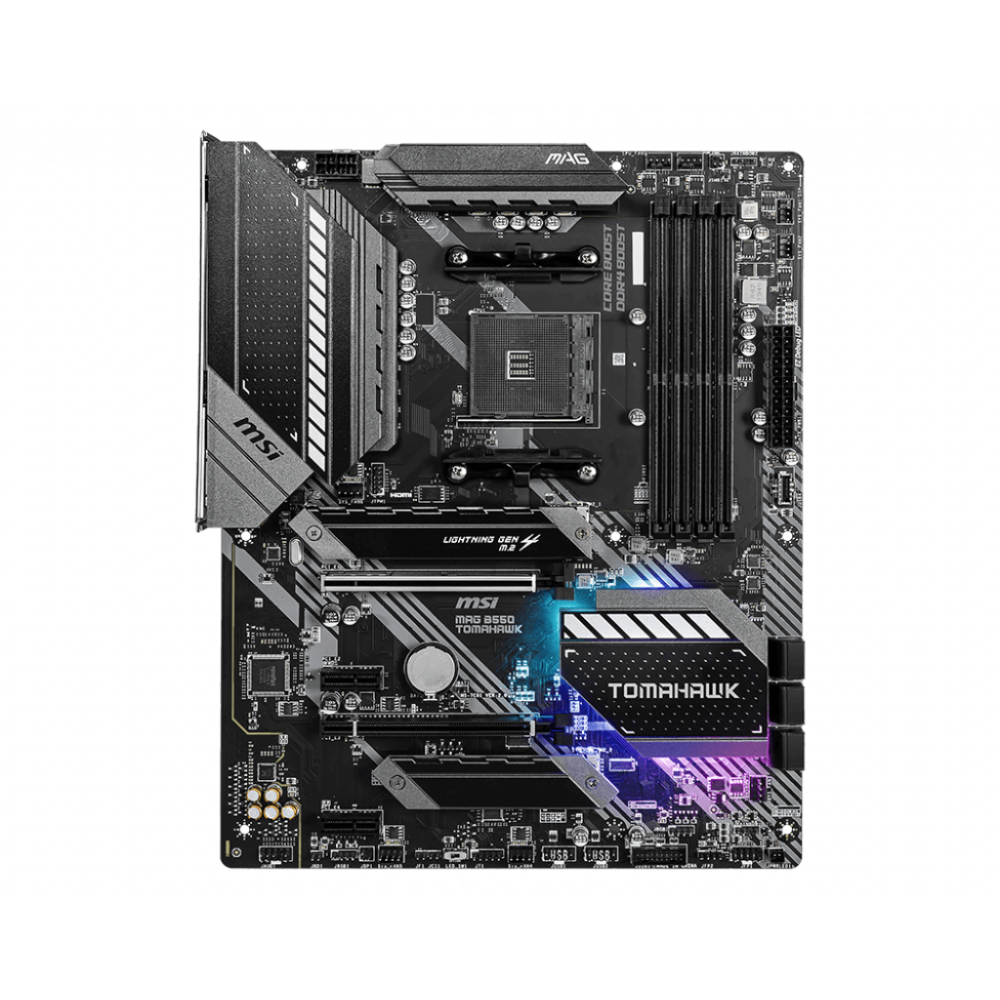

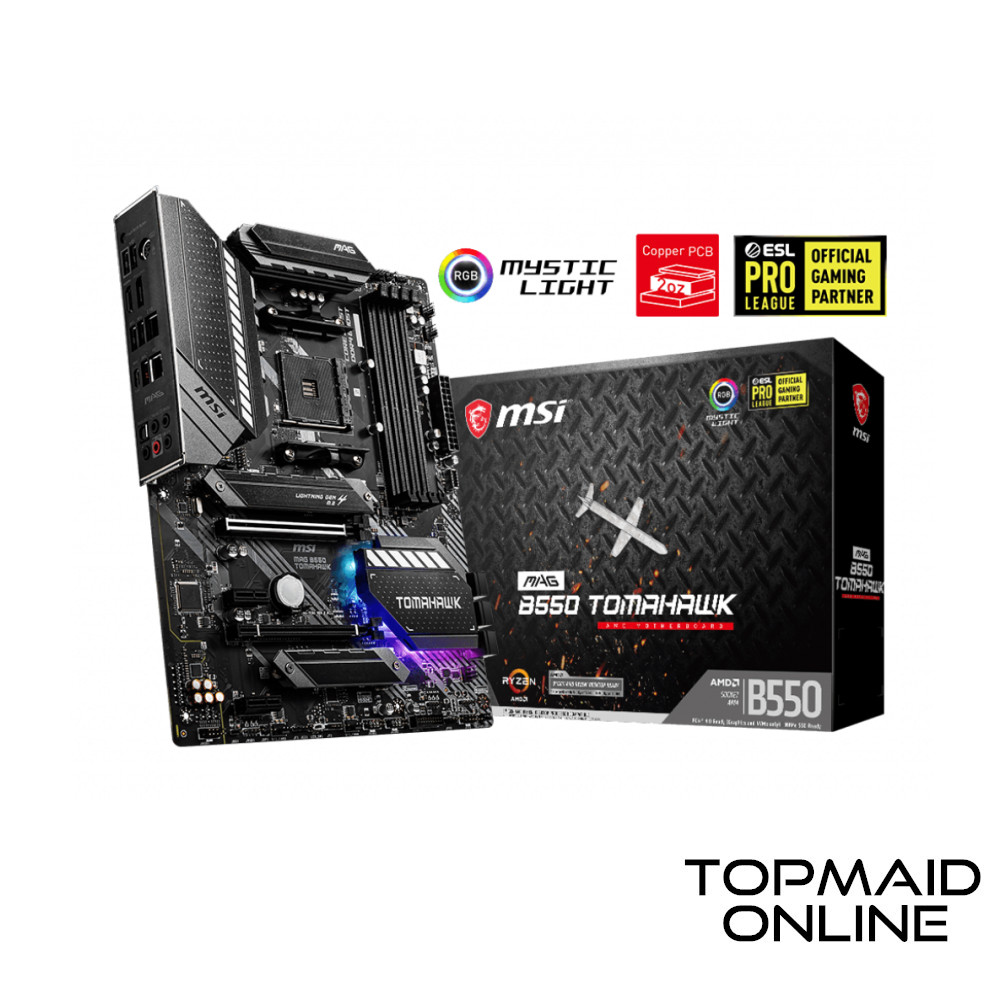

MAINBOARD MSI AMD AM4 B550 TOMAHAWK
MAINBOARD MSI AMD AM4 B550 TOMAHAWK
MAINBOARD MSI AMD AM4 B550 TOMAHAWK
MAINBOARD MSI AMD AM4 B550 TOMAHAWK
MAINBOARD MSI AMD AM4 B550 TOMAHAWK
MAINBOARD MSI AMD AM4 B550 TOMAHAWK
Brand: MSI
Product Code: MAG B550 TOMAHAWK
Availability: 2-3 Days
RM945.00

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.


Product Specifications:


SOCKET : AM4

CPU (MAX SUPPORT) : RYZEN 9

CHIPSET : AMD B550 Chipset

DDR4 MEMORY : 5100(OC)/ 5000(OC)/ 4866(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

MEMORY CHANNEL : Dual

DIMM SLOTS : 4

MAX MEMORY (GB) : 128

PCI-E X16 : 2

PCI-E X1 : 2

SATAIII : 6

M.2 SLOT : 2

RAID : 0/1/10

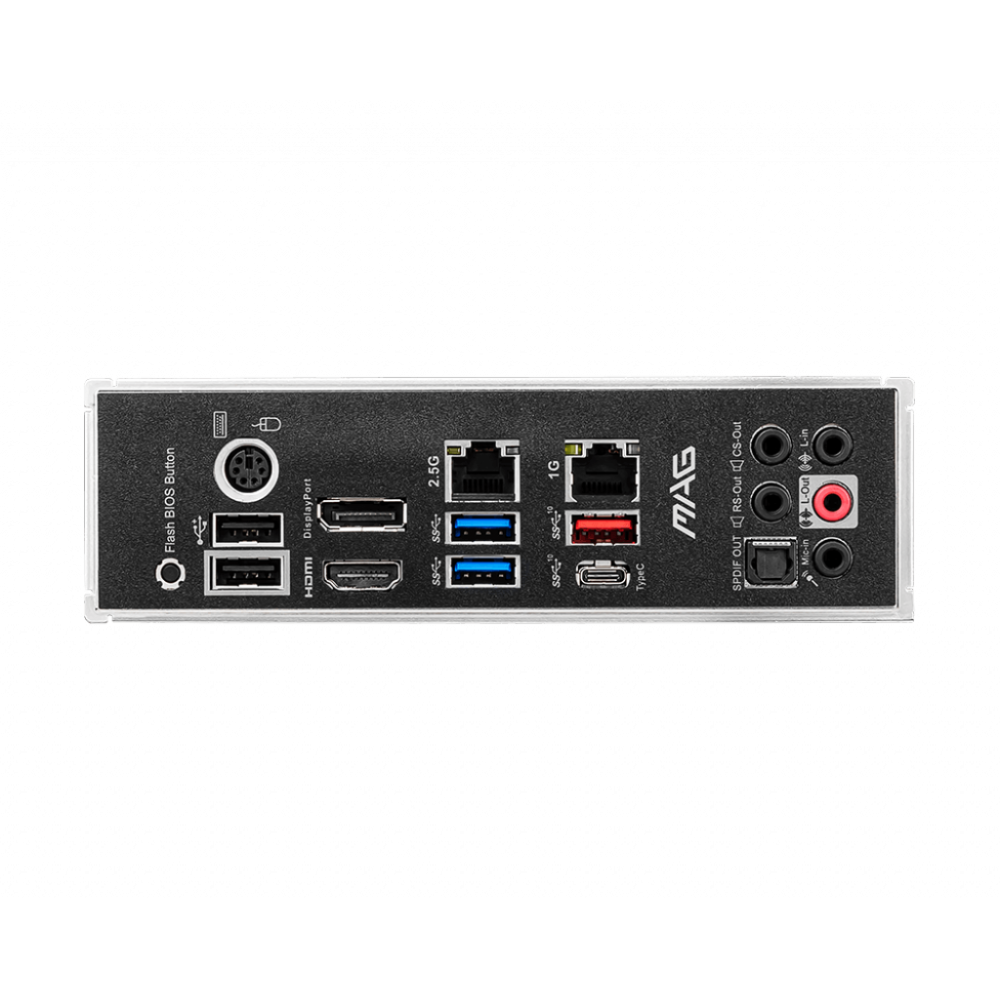

LAN : 1x Realtek® RTL8125B 2.5G LAN + 1x Realtek® RTL8111H 1G LAN

USB 3.2 PORTS (FRONT) : 1(Gen 1, Type C), 2(Gen 1, Type A)

USB 3.2 PORTS (REAR) : 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A)

USB 2.0 PORTS (FRONT) : 4

USB 2.0 PORTS (REAR) : 2

AUDIO PORTS (REAR) : 5+ Optical S/PDIF (Realtek® ALC1200 Codec)

DISPLAYPORT : 1

HDMI : 1

DIRECTX : 12

FORM FACTOR : ATX

CROSSFIRE : Y

https://www.msi.com/Motherboard/MAG-B550-TOMAHAWK/Specification



Tags: MAINBOARD MSI AMD AM4 B550 TOMAHAWK, MOBO
