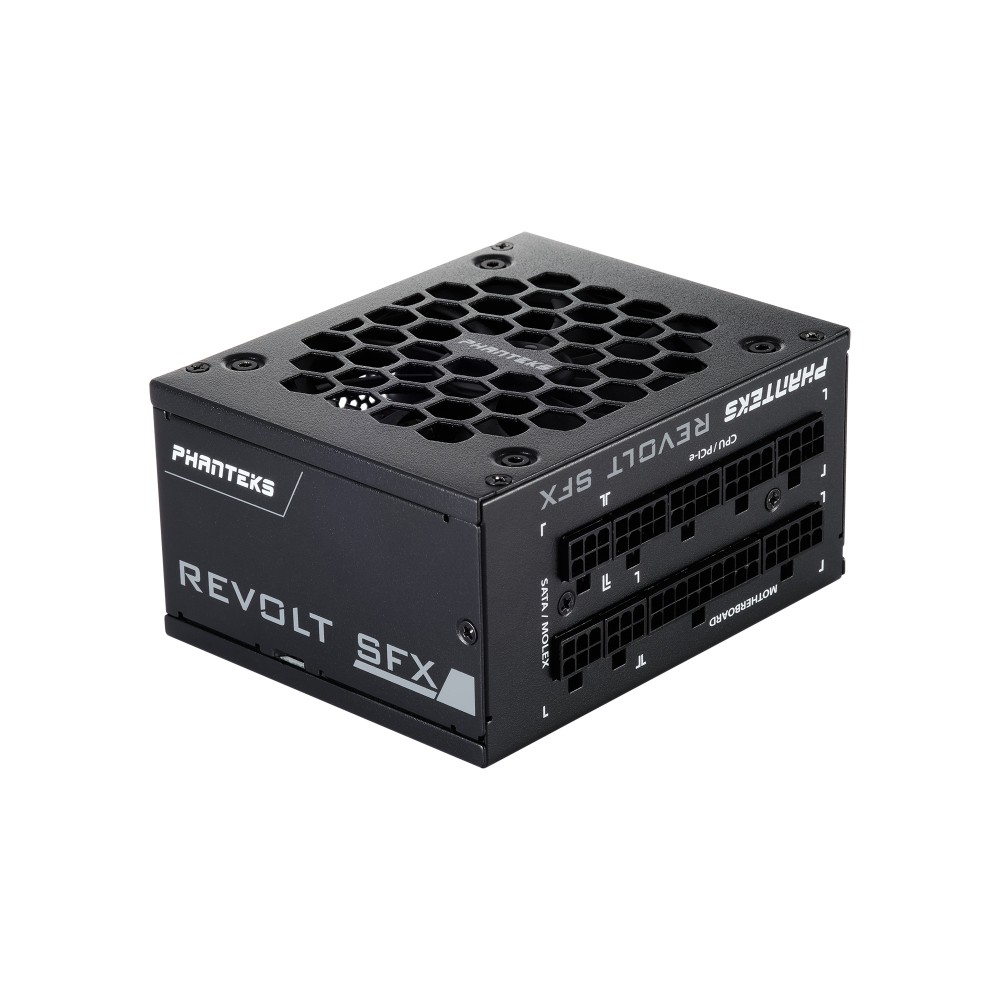

POWER SUPPLY PHANTEKS REVOLT SFX PLATINUM FULL MODULAR 750W
POWER SUPPLY PHANTEKS REVOLT SFX PLATINUM FULL MODULAR 750W
POWER SUPPLY PHANTEKS REVOLT SFX PLATINUM FULL MODULAR 750W
POWER SUPPLY PHANTEKS REVOLT SFX PLATINUM FULL MODULAR 750W
POWER SUPPLY PHANTEKS REVOLT SFX PLATINUM FULL MODULAR 750W
POWER SUPPLY PHANTEKS REVOLT SFX PLATINUM FULL MODULAR 750W
Product Code: PH-P750PSF-UK
Availability: 2-3 Days
RM699.00

FEATURES:

The Phanteks Revolt SFX power supplies bring the powerful Revolt series to a smaller footprint. The super-compact SFX form-factor maximizes its versatility to fit small form-factor chassis and free up space in larger chassis for better cable management. Developed with renowned power supply manufacturer Seasonic to ensure the best possible endurance and stability.


THE PREMIUM SFX PSU

- Phanteks brings the powerful Revolt series to a smaller footprint with the Revolt SFX

- 80 PLUS Gold & Platinum certification guarantees a 90% or 92% efficiency at 50% system load

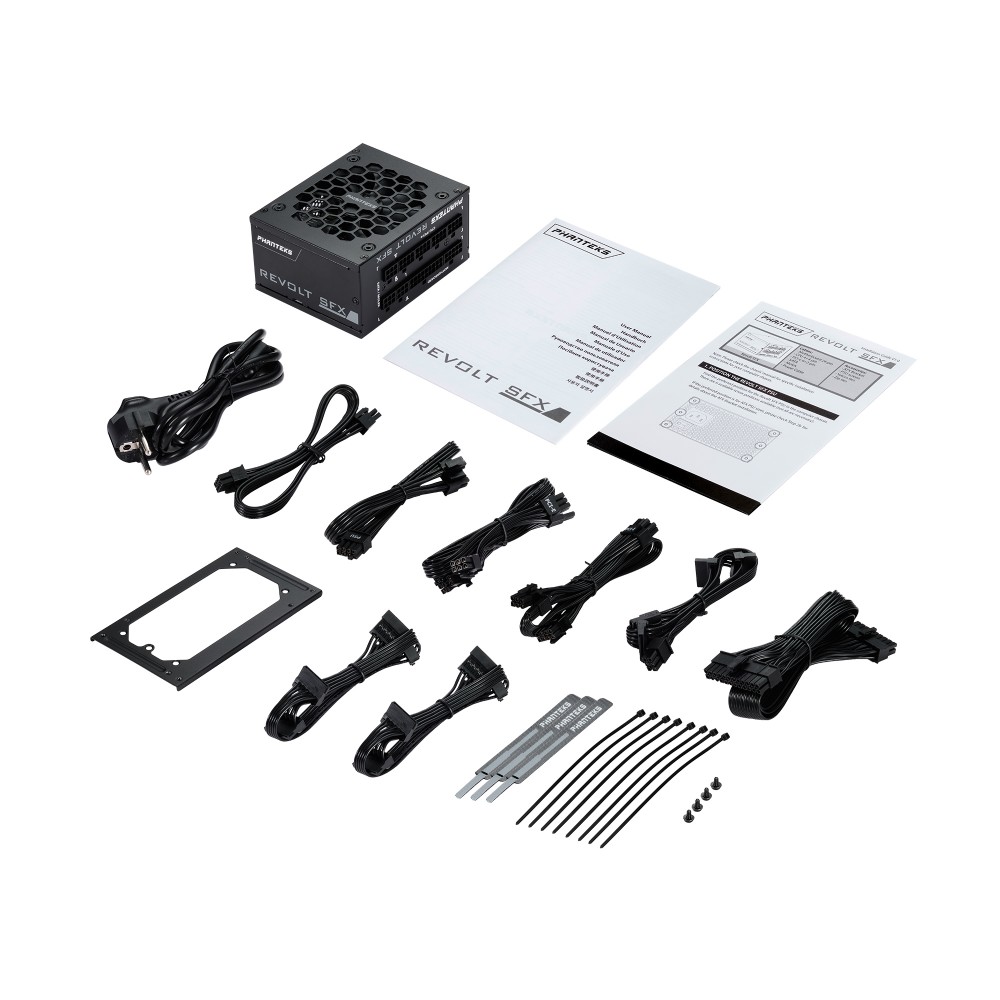

- Fully modular design , offers complete flexibility


REVOLT SFX 750 PLATINUM

Color:Black

Type:SFX

Maximum Power :750 W

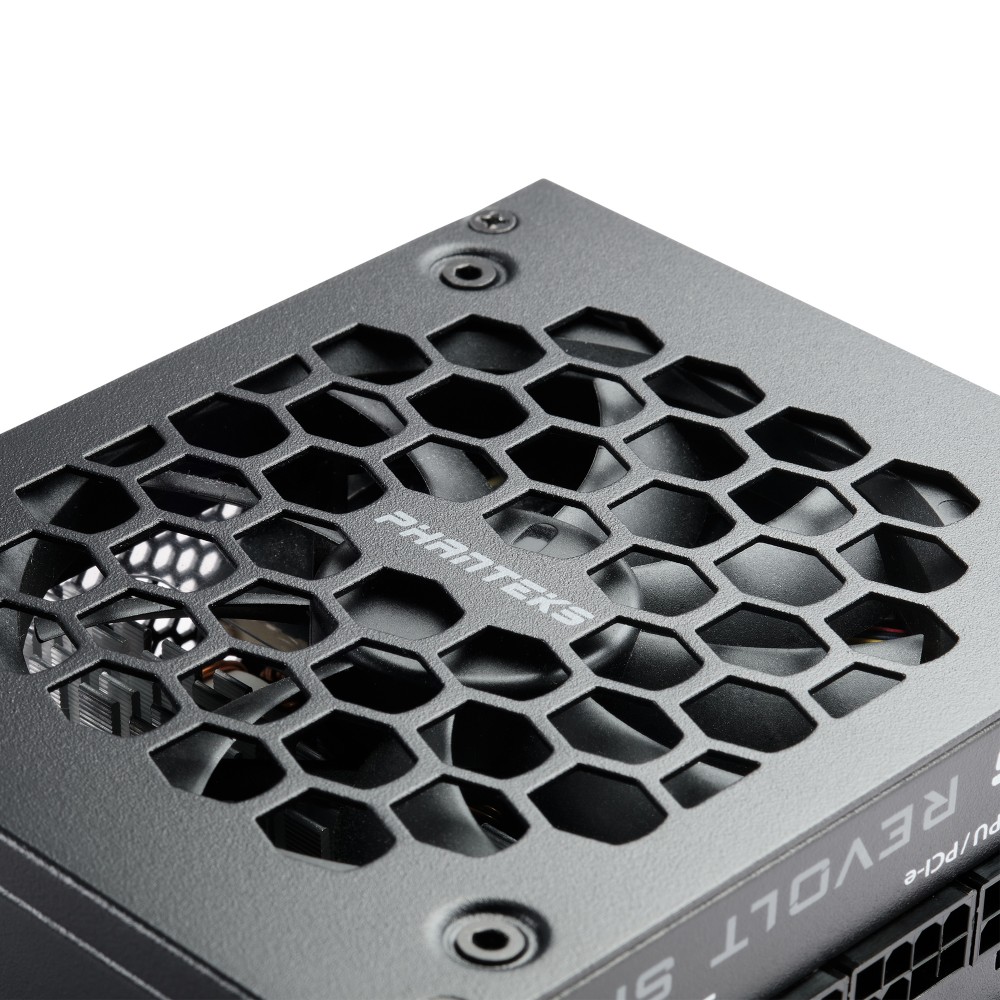

Fans :92mm Fluid Dynamic Bearing (FDB) Fan

Main Connector :24Pin

+12V Rails :Single

Modular :Full Modular

Full Modular

Energy-Efficient:80 PLUS PLATINUM Certified


Protection:

OPP (Overpower Protection)

OVP (Over Voltage Protection)

UVP (Under voltage protection

SCP (Short Circuit Protection)

OCP (Over Current Protection)

OTP (Over Temperature Protection)


No-Load protection:Reset Protection

Input Voltage:100 - 240 V

Input Frequency Range:50/60 Hz

Input Current:10 - 5A

Output:+3.3V@20A, +5V@20A, +12V@62A, -12V@0.3A, +5VSB@3A

MTBF :>100,000 Hours
