COOLER CPU SCYTHE NINJA 5

Ninja 5

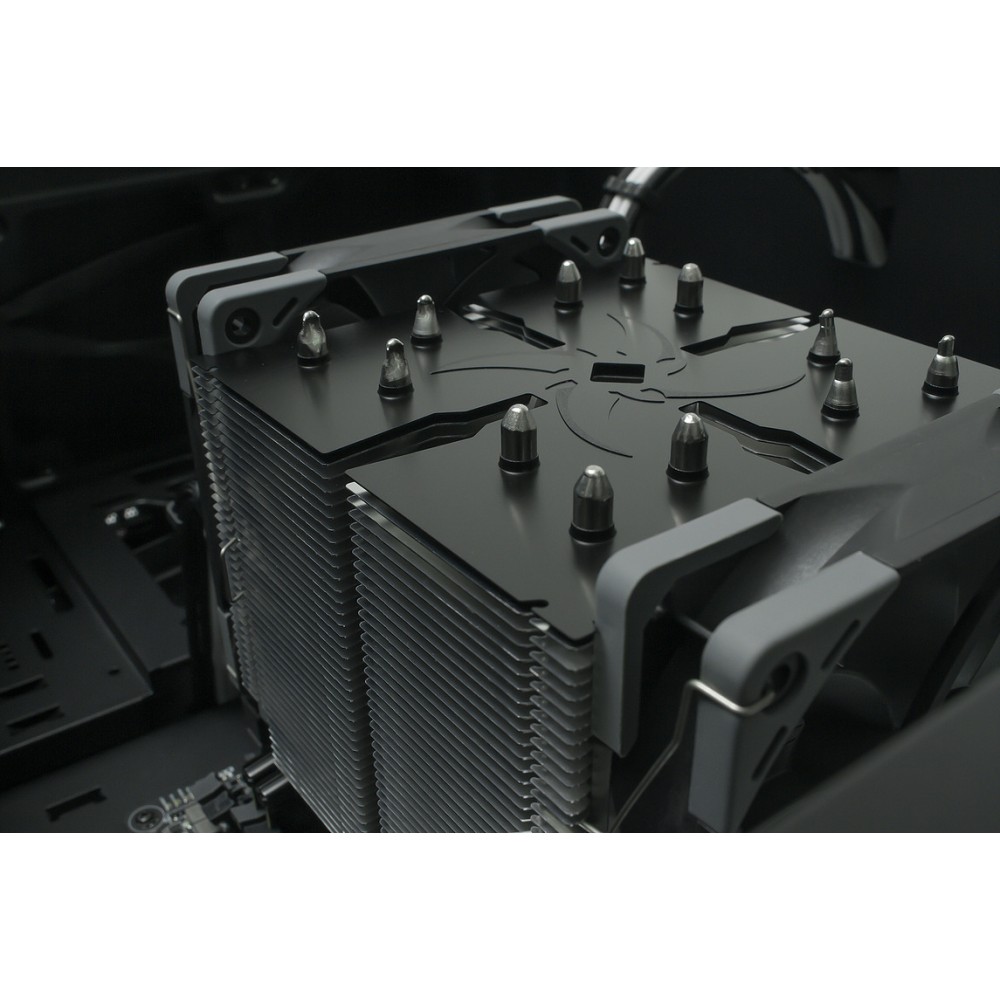

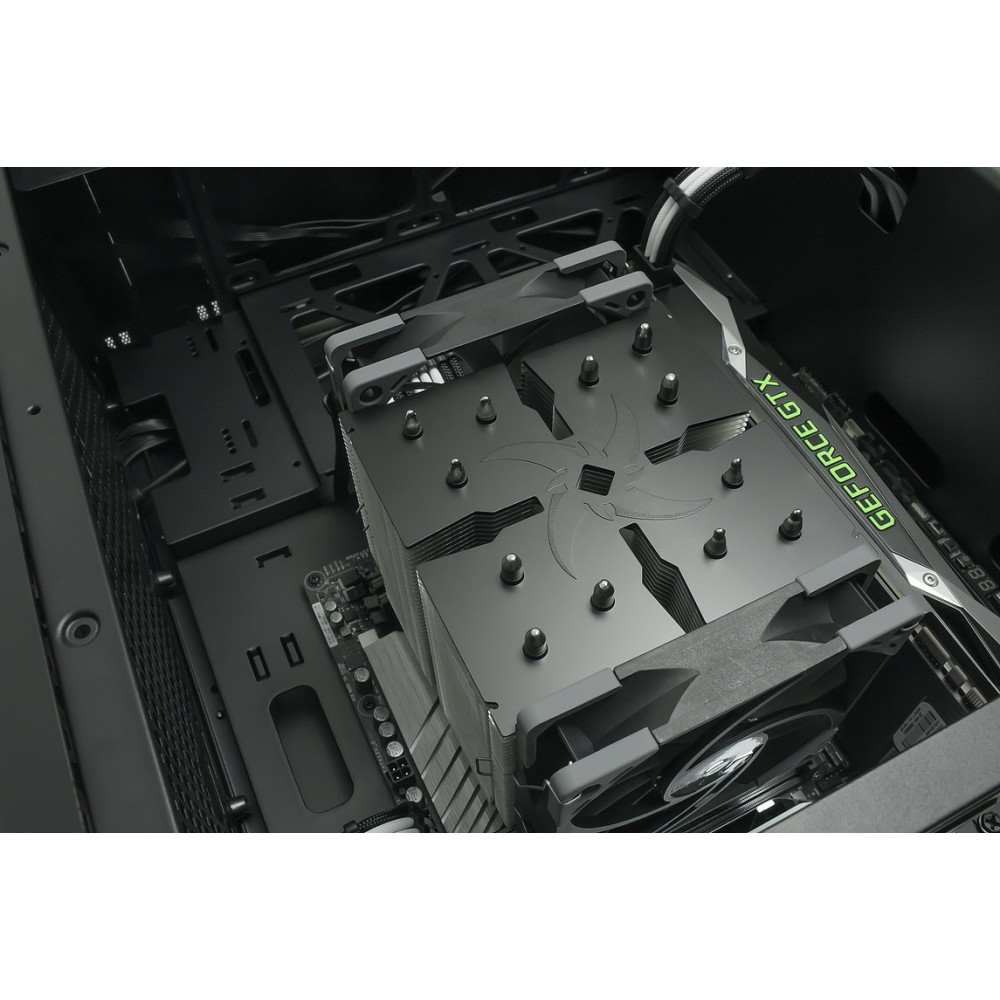

The 5th generation of the Ninja CPU Cooler series offers some interesting new features. The Ninja 5 includes two Kaze Flex 120 PWM fans which are significantly more silent solution without compromising the high performance that users expect from the Ninja Series. This goal has been achieved by mounting the two fans using the Push/Push principle and setting the fan rotation limit to only 800 rpm. The award-winning Kaze Flex fans use Sealed Precision Fluid Dynamic Bearings for a long lifespan of 120,000 hours (MTTF). The heatsink is designed for high compatibility, supporting even LGA 2066 motherboards with eight RAM slots. Six nickel-plated 6-millimeter copper heatpipes, a nickel-plated copper base-plate and the black anodized top-plate underline the high-quality workmanship. In addition, the third version of the Hyper Precision Mounting System (H.P.M.S.) is used, which significantly simplifies assembly and offers compatibility with a variety of sockets of the processor manufacturers AMD ™ and Intel ™.

Modelname:

Ninja 5 CPU Cooler

Modelnumber:

SCNJ-5000

EAN: 4571225056517

Compatibility:

Intel®:

Socket LGA775

Socket LGA1150

Socket LGA1151

Socket LGA1155

Socket LGA1156

Socket LGA1200

Socket LGA1366

Socket LGA2011 / 2011-v3 (Square ILM)

Socket LGA2066

AMD®:

Socket AM2

Socket AM2+

Socket AM3

Socket AM3+

Socket AM4

Socket FM1

Socket FM2

Socket FM2+

Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible.

Overall dimensions WxHxD:

138 x 155 x 180 mm (including fans - more dimensions)

Weight:

1190 g including fan

Heatpipenumbers / -diameter:

6 / 6 mm

Accessories:

Installation material for Intel® and AMD® Socket, thermal grease, fans, fan clips, installation manual, Y-PWM-cable, screwdriver

Base plate material:

nickel-plated copper  (additional information)

Fan - Specifications

Modelname:

Kaze Flex 120 PWM

Fan dimensions:

120 x 120 x 27 mm / 4.72 x 4.72 x 1.06 inch

Noise Level:

4 ~ 14,5 dBA

Air Flow:

16,6 ~ 43.03 CFM / 28,2 ~ 73,1 m³/h

Fan Speed:

300  ~ 800 rpm (±10%) (PWM-controlled)

Voltage / Amperage:

DC 12V / 0,09 A

Static Pressure:

0,75 ~ 4,8 Pa / 0,076 ~ 0,49 mmH²O

Bearing Type:

Sealed Precision FDB

MTTF:

120.000 Hours (25°C)
