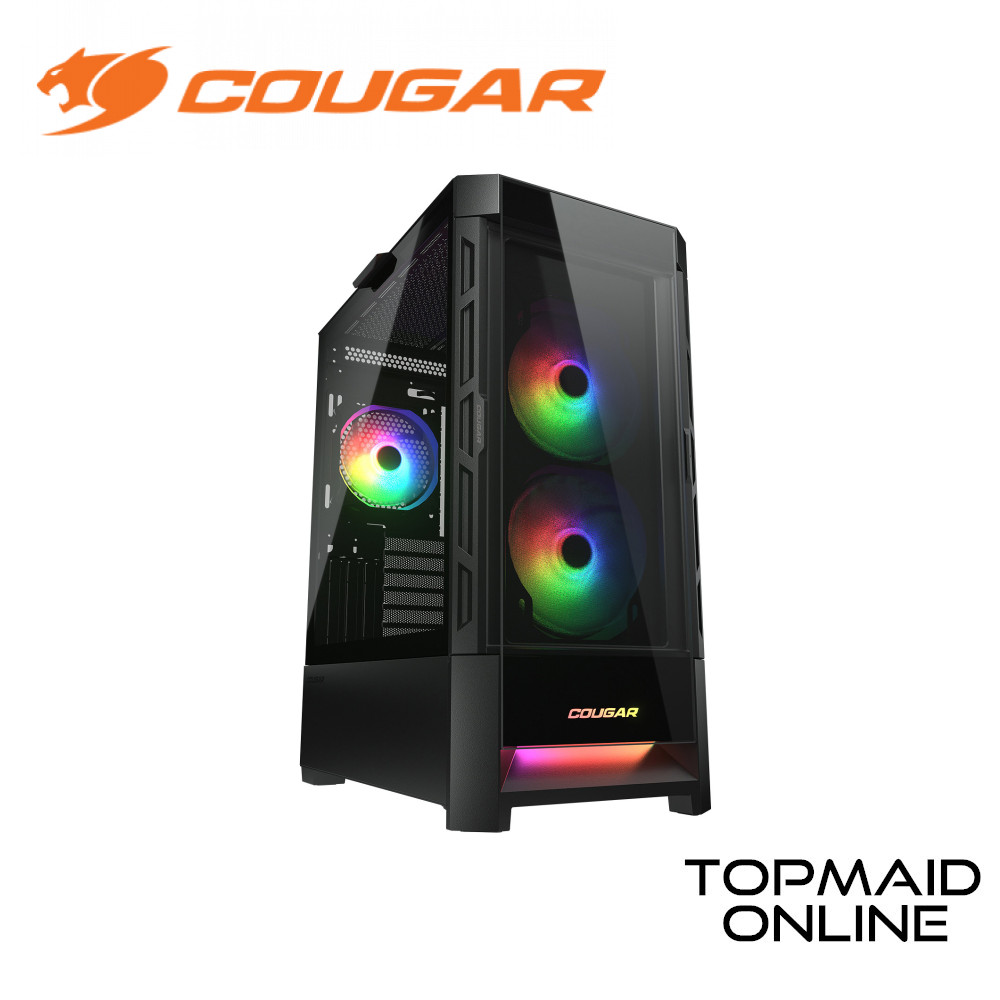

Name: CASING COUGAR ATX DUOFACE RGB TG (BLK)
SKU: DUOFACE-RGB
Availability: InStock

Specifications

Product Name		Duoface RGB
Case Form Factor		Mid Tower
Motherboard Type		Mini ITX / Micro ATX / ATX / CEB / *E-ATX
Dimensions (WxHxD)		230 x 491 x 386 (mm) 9.1 x 19.3 x 15.2 (in)
I/O Panel		USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x1, RGB Button
3.5″ Drive Bay		2
2.5″ Drive Bay		2 (2 SSD trays included)
Expansion Slots		7+3
Vertical GPU Support		Yes
Cooling Fan Support	Front	120mm x 2 / 140mm x 2
	Top	120mm x 2 / 140mm x 2
	Rear	120mm x 1 / 140mm x 1
Pre-installed Fans	Front	140mm ARGB fan x 2
	Rear	120mm ARGB fan x 1
	Speed	1000 RPM
	Connector	5V 3 Pin (ARGB) / 3 Pin (Fan)
Maximun Number of Fans		5 Max.
Water Cooling Support	Front	*280mm / 240mm / 140mm / 120mm
	Top	*280mm / 240mm / 140mm / 120mm
	Rear	120mm / 140mm
Transparent Left Panel		4mm Tempered Glass
Onboard Lighting System		Yes
RGB Sync with M/B		Yes
COUGAR Logo RGB Light		Yes
Max. Graphics Card Length		330 (mm) / 13 (in)
Max. CPU Cooler Height		190 (mm) / 7.5 (in)
Max. PSU Length		160 (mm) / 6.3 (in)

* E-ATX up to 277mm wide.
* Please choose either front or top to install a 280mm radiator.
* Max. length of RTX 3090 graphic card is 325mm.

Weight	15 kg
Dimensions	44 × 28 × 55 cm
