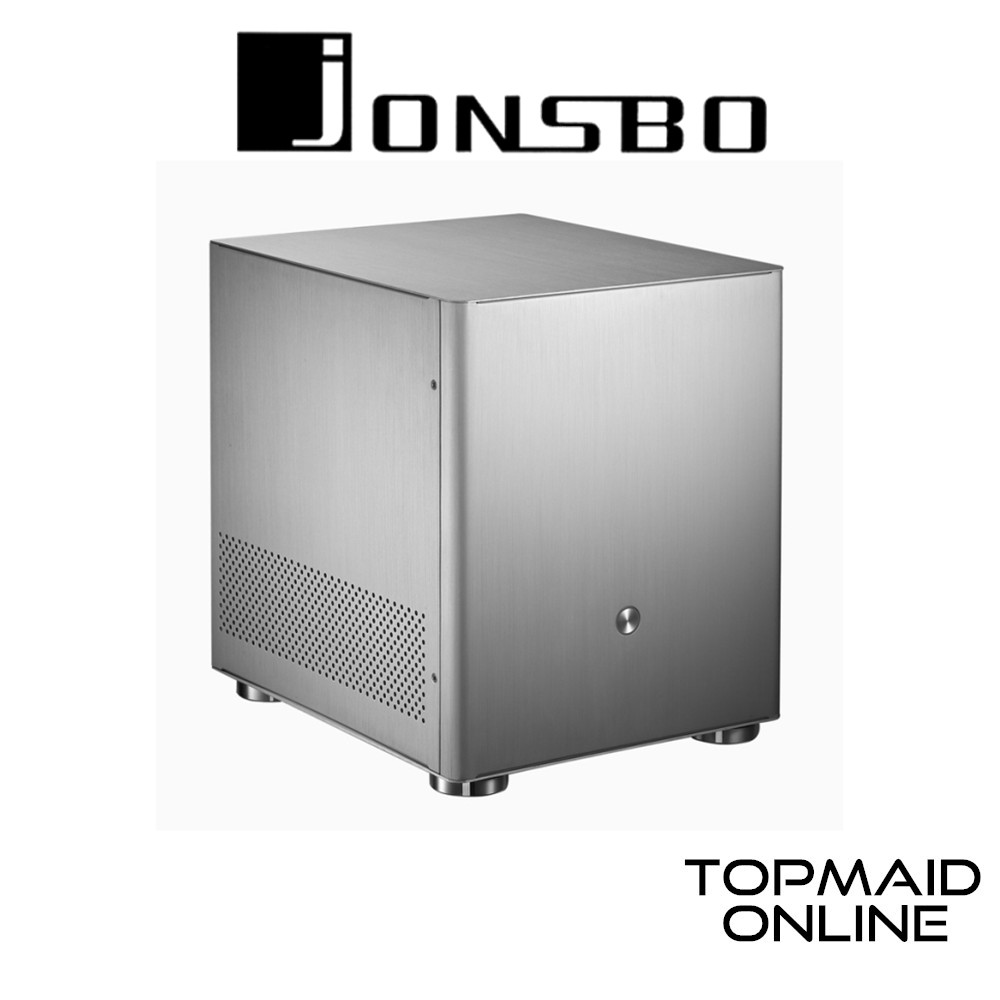

CASING JONSBO ATX C5 TG SILVER

RM249.00

Out of stock

SKU: jonsbo-c5 Categories: , Tags: ,

C5 Silver

C5 is a small form factor ATX case based on the idea of functional integrity of the product. It is an ATX case iteratively derived from MATX C3 PLUS. The shell is made of l.5MM aluminum-magnesium alloy. In terms of structural strength, the main structural strength is enhanced by L-shaped crossed buckles design and multiple bending processes. In terms of product functionality, it is design with wire management at back, bottom independent PSU cabinet and front side cooling channel. In such a small space it supports 5 HDD with longer video card support, and many other iterative optimization makes C5 a perfect integral product. Even ordinary users can easily build a small-sized ATX system with clear wiring and unobstructed heat dissipation.

Mode:C5

Color:Silver

Dimension:218mm(W)×360mm(D)×439mm(H)

Material:Front Plate:1.5mm Aluminumï¼›      Internal Structure:0.8mm SGCC

Motherboard:ITX , Micro ATX , ATX

Drive Bays:4×3.5″,  2×2.5″ or 3×3.5″,  4×2.5″

Cooling System:Front : 2*120mm or 2*140mm(Optional) ï¼›Back: 1*120mm (Optional)ï¼› Bottom:1*120mm (Optional)

Radiator Support:Front : 240mm or 280mm Radiator

CPU Cooler:170mm

Dispaly Card:340mm(340mm can be installed if front HDD rack bracket has been removed, otherwise no longer than 280mm )

I/O Ports:Audio×1, MIC×1, USB3.0×2

Expansion Slot:7

PSU:250mm(lf fan and HDD are installed on bottom,only 185mm can be installed)

Weight:Net 5.3KG

https://www.jonsbo.com/en/products/c5silver.html

Weight 12 kg
Dimensions 50 × 30 × 46 cm
