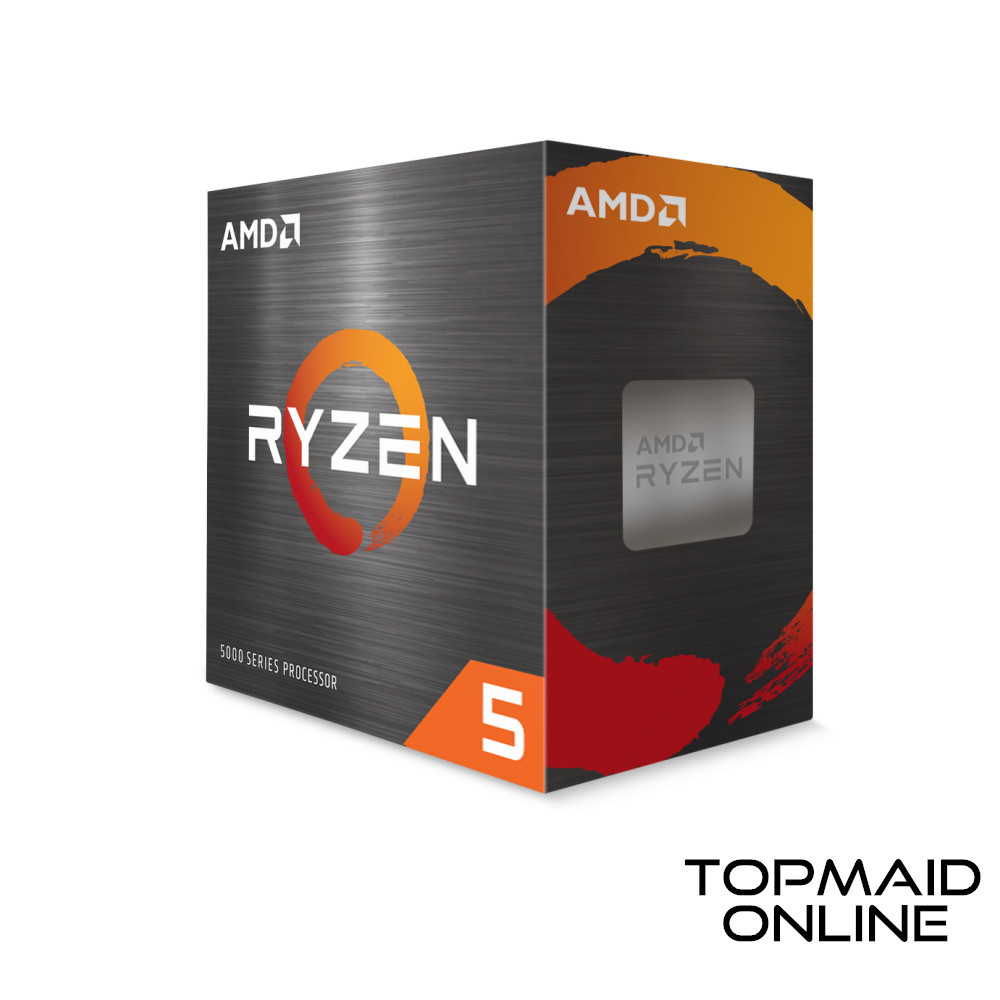

AMD Ryzen™ 5 5600X
General Specifications:
Platform
Boxed Processor
Product Family
AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 5 Desktop Processors
# of CPU Cores
6
# of Threads
12
Max. Boost Clock
Up to 4.6GHz
Base Clock
3.7GHz
Total L2 Cache
3MB
Total L3 Cache
32MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Unlocked for Overclocking
Yes
CPU Socket
AM4
Thermal Solution (PIB)
Wraith Stealth
Max. Operating Temperature (Tjmax)
95°C
Launch Date
11/5/2020
*OS Support
Windows 11 – 64-Bit Edition
Windows 10 – 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity:
PCI Express® Version
PCIe 4.0
System Memory Type
DDR4
System Memory Specification
Up to 3200MHz
Product IDs:
Product ID Boxed
100-100000065BOX
Product ID Tray
100-000000065
Product ID MPK
100-100000065MPK
Key Features:
Supported Technologies
AMD “Zen 3” Core Architecture
AMD StoreMI Technology
AMD Ryzen™ Master Utility
AMD Ryzen™ VR-Ready Premium
FOOTNOTES:
-Testing by AMD performance labs as of 9/2/2020 based on the average FPS of 40 PC games at 1920×1080 with the High image quality preset using an AMD Ryzen™ 9 5900X processor vs. Core i9-10900K. Results may vary. R5K-002
-Testing by AMD Performance Labs as of September 23, 2020 using a Ryzen 9 5950X and Intel Core i9-10900K configured with DDR4-3600C16 and NVIDIA GeForce RTX 2080 Ti. Results may vary. R5K-039
